In the modern age, wireless communication permeates our lives, connecting us to the internet, enabling mobile phone calls, and powering countless other technologies. However, the invisible waves that carry these signals are subject to various factors influencing their strength and direction. To optimize signal reception and transmission, understanding the concept of antenna direction maps becomes crucial.

What is an Antenna Direction Map?

An antenna direction map, also known as an antenna pattern or radiation pattern, is a visual representation of how an antenna transmits or receives radio waves in different directions. It depicts the antenna’s signal strength and directionality, providing valuable insights into its performance.

Understanding the Components of an Antenna Direction Map

Antenna direction maps are typically represented in two-dimensional polar plots, with the antenna at the center. The radial lines represent the distance from the antenna, while the angular lines depict different directions. The map itself is a contour plot, with each contour line representing a specific signal strength level.

Key Components:

• Main Lobe: The primary direction of maximum signal strength. This is the direction where the antenna transmits or receives signals most effectively.
• Side Lobes: Secondary lobes that radiate signal strength in directions other than the main lobe. These lobes are typically weaker than the main lobe and can cause interference in some cases.
• Back Lobes: Lobes that radiate signal strength in the opposite direction of the main lobe. They are generally weaker than the main lobe and side lobes.
• Nulls: Directions where the antenna transmits or receives minimal signal strength. These areas are often used to minimize interference from other sources.

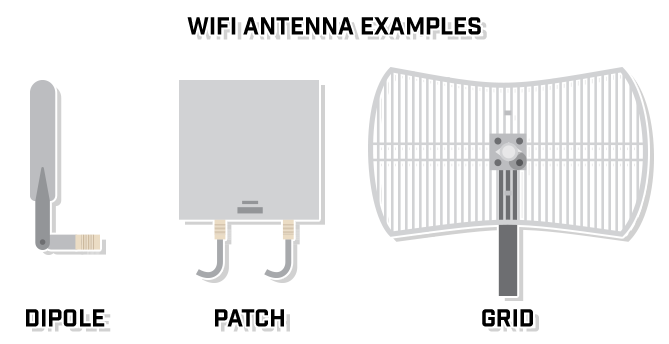

Types of Antenna Direction Maps

Antenna direction maps can be categorized based on the type of antenna and its application. Some common types include:

• Omnidirectional Antennas: These antennas radiate signals equally in all directions, creating a circular antenna direction map. They are often used in applications where signal coverage is required in all directions, such as cellular towers and Wi-Fi routers.
• Directional Antennas: These antennas concentrate their signal strength in a specific direction, creating a focused beam. Directional antennas are commonly used in applications where long-distance communication or high-gain reception is required, such as satellite dishes and long-range wireless links.
• Parabolic Antennas: These antennas have a dish-shaped reflector that focuses the signal in a single direction, resulting in a highly directional antenna pattern. They are commonly used in applications requiring high gain and precision, such as satellite communication and radar systems.

The Importance of Antenna Direction Maps

Understanding antenna direction maps is crucial for several reasons:

• Optimizing Signal Strength: By analyzing the antenna direction map, engineers can determine the optimal placement and orientation of the antenna to maximize signal strength in the desired direction. This is particularly important in applications where signal strength is critical, such as wireless communication networks and broadcasting systems.
• Minimizing Interference: Antenna direction maps help identify areas where the antenna radiates minimal signal strength, minimizing interference from other sources. This is important in environments where multiple wireless devices operate close to each other, such as in crowded urban areas or industrial settings.
• Analyzing Antenna Performance: Antenna direction maps provide valuable insights into the antenna’s performance characteristics, such as its gain, bandwidth, and polarization. This information is essential for designing and optimizing wireless communication systems.
• Troubleshooting Signal Issues: By analyzing the antenna direction map, engineers can identify potential sources of signal issues, such as obstructions or reflections that may be affecting the antenna’s performance. This helps in troubleshooting and resolving connectivity problems.

FAQs about Antenna Direction Maps

1. How can I obtain an antenna direction map?

Antenna direction maps are typically provided by the antenna manufacturer. They are often available in the antenna’s datasheet or technical specifications. Some online resources and software tools also provide antenna direction maps for various types of antennas.

2. How do I interpret an antenna direction map?

The antenna direction map is a visual representation of the antenna’s radiation pattern. The contour lines on the map represent different signal strength levels. The main lobe represents the direction of maximum signal strength, while the side lobes and back lobes represent weaker signal strengths in other directions.

3. What factors affect an antenna’s radiation pattern?

Several factors can affect an antenna’s radiation pattern, including:

• Antenna Design: The shape, size, and material of the antenna significantly impact its radiation pattern.
• Frequency: The frequency of the radio waves being transmitted or received affects the antenna’s wavelength and radiation pattern.
• Environment: Obstructions, reflections, and other objects in the environment can influence the antenna’s radiation pattern.

4. How can I use an antenna direction map to improve my wireless signal?

By analyzing the antenna direction map, you can:

• Orient the antenna towards the desired direction: This will maximize signal strength in the direction of the receiver.
• Avoid placing the antenna near obstructions: Obstructions can block or reflect radio waves, reducing signal strength.
• Choose the right antenna for your application: Different antennas have different radiation patterns, so selecting the appropriate antenna for your specific needs is crucial.

5. Are antenna direction maps only relevant for professional applications?

While antenna direction maps are essential for engineers and professionals working in wireless communication, they can also be beneficial for individuals seeking to optimize their home Wi-Fi network or improve reception for satellite TV. Understanding the basic concepts of antenna direction maps can help in making informed decisions about antenna placement and orientation.

Tips for Utilizing Antenna Direction Maps

• Consult the antenna’s datasheet: The datasheet will provide detailed information about the antenna’s radiation pattern and other performance characteristics.
• Use simulation software: Software tools can help visualize and analyze antenna direction maps in different environments.
• Experiment with antenna placement: Try different antenna positions and orientations to find the optimal configuration for your specific application.
• Consider environmental factors: Obstructions, reflections, and other objects in the environment can affect the antenna’s performance.
• Seek professional assistance: If you are unsure about interpreting an antenna direction map or optimizing your wireless system, consult a professional engineer for guidance.

Conclusion

Antenna direction maps are a fundamental tool for understanding and optimizing wireless communication systems. By providing a visual representation of an antenna’s radiation pattern, they offer valuable insights into signal strength, directionality, and interference. Understanding the concepts and utilizing the information provided by antenna direction maps can significantly enhance wireless communication performance, ensuring reliable connectivity and optimal signal quality. From optimizing home Wi-Fi networks to designing complex communication systems, antenna direction maps play a vital role in navigating the wireless world.
